Model 1362 Industrial Press
Specifications

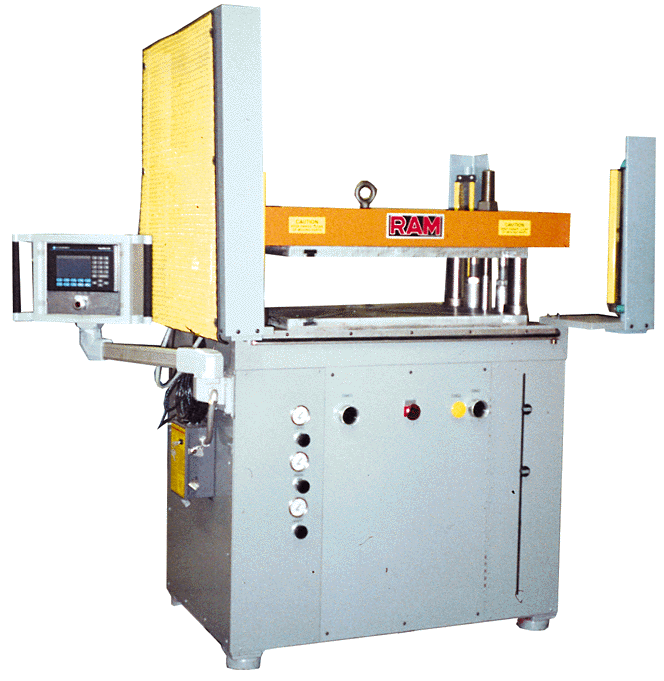

The model 1362 RAM press is a hydraulic down acting press, offering maximum control throughout each operating cycle. The press is automatic through each cycle; the operator simply charges the die, pushes two mushroom buttons (two as a safety feature) to activate the press and prepare to receive the formed article as it is released from the final die member when the press opens. The press may be operated by one operator or with an assistant depending upon production planning.
Speed
Fast approach 462 in/min - 30 & 60 Ton
/ 408 in/min - 90 &150 Ton. For 60 ton with optional 30 hp
unit - 700 in/min. For 90 ton with optional 40 hp unit - 560 in/min.
Pressing - The downward moving top platen
will upon selection go into an automatic slower pressing speed
up to six inches before closing. This speed is approximately 40
in/min.
Slow parting - The speed of the top platen
upon opening of the die may be adjusted independently of the slow
pressing speed.
Fast parting 388in/min - 30 & 60 Ton /
334in/min - 90 & 150 Ton. For 60 ton with optional 30 hp unit
- 588 in/min. For 90 ton with optional 40 hp unit - 457 in/min.
Construction
The press and pumping unit are constructed
as separate units. The standard arrangement is to locate the pumping
unit approximately 6 feet behind the press. The pumping unit may
be located remotely. Special piping can be furnished upon request.
Two bolster plates approximately 1-1/4"
thick nickel/chrome plated steel or cast iron are furnished. These
are "T" slotted for mounting standard die cases onto
the press. Bolster plates have the advantage of being easily drilled
and tapped for new mounting holes. Worn mounting holes may be
easily repaired, and the ground surfaces may be readily resurfaced.
Mechanical Stops
Four mechanical stops are provided as standard equipment. They are adjustable in 0.007" increments.
Electrical
The unit comes with a service disconnect mounted
to the handle of the electrical box. The motor is supplied as
either 230 or 460 volt as standard. Other voltages are available.
Two modes of operation are provided; manual,
and automatic. The manual mode is generally used for press and
die set up. The automatic mode is used for production pressing.
Controller - All presses use an Allen/Bradley
SLC500 controller for all press functions.
Air System
The press comes equipped with a RAM air system for top air, bottom air, and partial air. Vacuum can be added if desired.
Guards
The press comes equipped with light curtain guards.
MODEL 1362 PRESS COMPARISONS
PRESS SIZE |
33 TON |
60 TON |
90 TON |
150 TON |
|---|---|---|---|---|
| Work Area | 24" x 24" | 24" x 36" | 30" x 39" | 36" x 40" |
| Daylight | 29" to 34" * | 32" to 37" * | 32 " to 37" * | 33" to 43" * |
| Press Stroke | 24" | 27" | 27" | 27" |
| Press Height (maximum) | 80" | 84" | 84" | 105" |
| Press Foot Print | 24" x 36" | 24" x 50" | 30" x 56" | 36" x 65" |
| PU Foot Print | 24" x35" | 30" x 48" | 36" x 56" | 36" x 65" |
| Motor | 10 HP | 20 HP | 30 HP | 40 HP |
| Controls | automatic | automatic | automatic | automatic |
* Daylight is adjustable.
All presses have:
electrical air valves air/oil
coolerdown acting double cylinder
four adjustable die stops
light curtain guards
Packages
The RAM Model 1362 Press may be purchased as part of a package at considerable savings. Starter packages include the press, die training and manual, tooling, tooling rings, working dies, die cases, hydraulic cart with die storage system and RAM Lifetime technical support. Other packages, including an air compressor, can be tailored to meet your specific requirements.
Terms & Delivery
All presses are shipped FOB Columbus, Ohio
Orders require a 1/3 depositBalance
due upon shipment.Normal delivery
is six to eight weeks.
RAM delivery and set-up with training in your
plant is available.
