Table Top Press-XL

The TABLE TOP RAM Press can be used in forming a wide range of ceramic objects including necklaces, buttons, tiles, art pieces and earrings. While maintaining the artistic, handcrafted qualities of custom designed pieces, a variety of clay bodies including porcelain can be used. The TABLE TOP RAM Press Package comes complete with a working die and cases. The press is ready to plug into your air compressor. The cylinder, stroke and daylight will allow you to quickly press small tiles or several pieces of jewelry with each motion. The working surface takes a 10" diameter die as well as RAM's special 10 x 10 square case developed specially for this press.

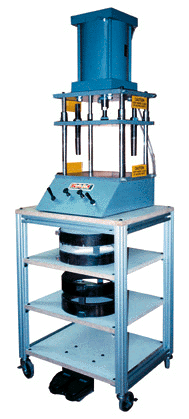

Table Top Press Cart & Foot Pedal System

With the RAM TABLE TOP PRESS CART and FOOT PEDAL SYSTEM the production capability of the TABLE TOP PRESS can be greatly increased. The RAM TABLE TOP PRESS CART and FOOT PEDAL SYSTEM will also help reduce operator fatigue. The cart system features foot pedals for controlling the die release air, as well as storage shelves for extra dies. The addition of the foot pedal release system can increase the press production rate 200% or more. The cart is made of extruded aluminum construction. It is designed with three shelves for die storage. This cart also has the added advantage of being mounted on four swivel casters, making the whole unit very portable. Shipping weight is 65#.


Press Features

2-1/2 Ton pressing capacityEasy to operateProtective safety shields

Adjustable die stops to control thickness of piecesCompact single unit construction

Quick (3-5 strokes/min.)Two hand controls for safetyLarge 11" x 11" working surface

Convenient table top construction

Additional dies made to your requirements and mounted in RAM Die Cases for use on this press are also available.


The Table Top RAM Press Package includes:

1 TT-XL Press1 Set of die rings1 Working die for tile or earrings

1 Roll Around Cart with Foot Pedals

Instruction manual that covers: Press set up and operation and How to make the RAM Process work for you


Terms - All presses are shipped FOB Columbus, Ohio. A $500.00 US deposit is required with your order with payment in full prior to shipment to avoid COD charges.

Also Available in a 5 Ton Version

Table Top Package Pricing
